Description of Listing

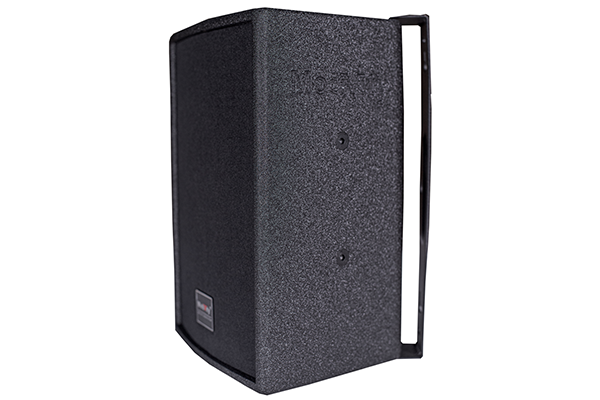

2-way 8'' passive wall mount loudspeaker
| MODEL | CS-08 |
| TECHNICAL SPECIFICATION | |
| System type | 2 unit 2 phase inversion |
| Rated power | 150 W |
| Maximum power | 300 W |
| Peak Power | 600 W |
| Nominal sensitivity (1w@1m) | 97 dB |
| Nominal Impedance | 8 OHMS |
| Recommended amplifier rated output power | 200W -350W @8 OHMS |
| Directivity (-6dB) | 80 H x 80 V |
| SPL | 135dB@700w(138dB@1400w) |
| Frequency Bandwidth | 70Hz—20KHz |
| Transducer Configuration | the low frequency driver 8″ ( 210mm unit 38mm voice coil 130mm Magnetic Steel )*1 the high frequency driver 3″ ( 25mm voice coil 90mm Magnetic Steel )*1 |
| Frequency division mode | Passive |
| Connector | Speakon NL4x2pin 1+/2+POS PIN1-/2-NEG |
| Box Material | 15mm ( 0.6″ ) MDF Medium density fiber board W 278mm* D 210mm *H 370mm |
| Weight | 8KG |
