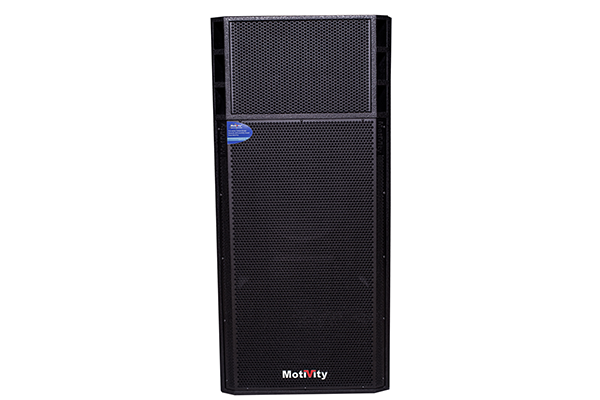

Speaker Type: 5-unit 3-way bass reflex

Rated Power: 1000W

Maximum Power: 2000W

Nominal Impedance: 4 OHMS

Recommend Amplifier Rated Output Power: 1500W—2000W@4 OHMS

Sensitivity(1W@1m): 100dB

SPL: 130dB@1000W(133dB@2000W)

Coverage (-6dB): 100°Hor.×60°Ver

Frequency Bandwidth: 45Hz—18KHz

Transducer Configuration: Low frequency driver 15″ (75mm voice coil 180mm magnet) ×2

NdFeB medium frequency driver 6.5″(45mm voice coil 85mm magnet) ×2

High frequency driver 3″ (75mm voice coil165mm magnet)×1

Connector: SPEAKON NL4×2PIN1+/2+POS. PIN1-/2-NEG.

Cabinet Material: 18mm (0.7″) plywood

Color: The default is black, other colors can be customized.

Product Dimension(W×D×H): 593mm×525mm×1286mm

Packaging Dimension(W×D×H): 660mm×595mm×1365mm

Weight: 71.3Kg
