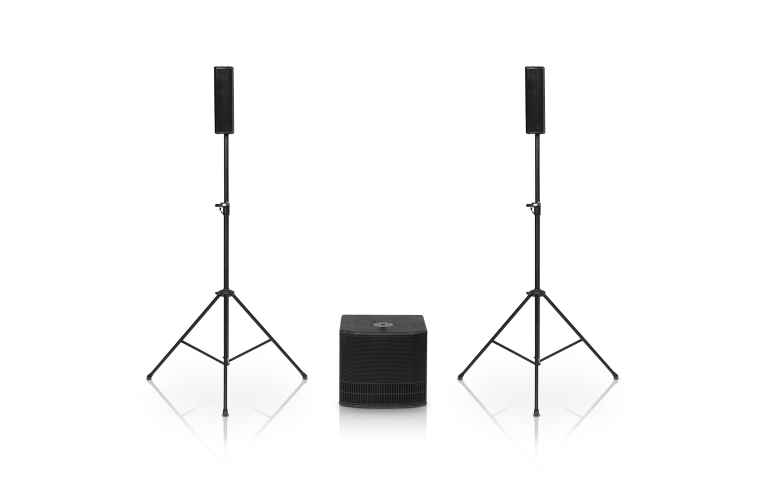

Speaker Type: 3-amped Stereo System with
two full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB]: 37 – 15.000 Hz
Max SPL: 121 dB

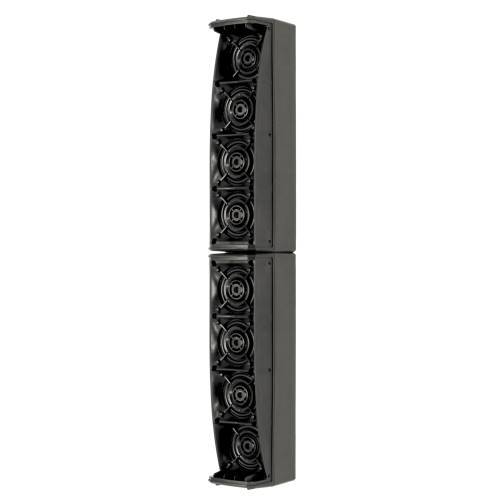

MF – HF: 8x 3″
Type MF – HF: Neodymium
LF:12″
Directivity: 95×65°
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class-D
Power Amp Peak: 1000 W
Processor
Controller: DSP 24 Bit/48 kHz
System Presets: Factory presets + User defined
Limiter: Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF206 Hz
Input
Mic/Instrument Channel1x Combo (XLR/Jack) balanced/unbalanced input
Line Channels2x Combo (XLR/Jack) balanced/unbalanced inputs
Media Channel1x Bluetooth® built-in receiver
Mix Output1x XLR balanced output
Mechanics
Housing (Subwoofer)15mm Black Painted Plywood
Housing (Tops)Polypropylene PP
Handles2x lateral side (Subwoofer)
Width (Top): 95 mm (3.74 in)
Height (Top): 360 mm (13.98 in)
Depth (Top): 137 mm (5.39 in)
Width (Subwoofer): 465 mm (18.3 in)
Height (Subwoofer): 400 mm (15.7 in)
Depth (Subwoofer): 430 mm (16.9 in)
Weight (Top): 1.9Kg – 4.19lbs.
Weight (Subwoofer): 16.4Kg – 36.16lbs.
