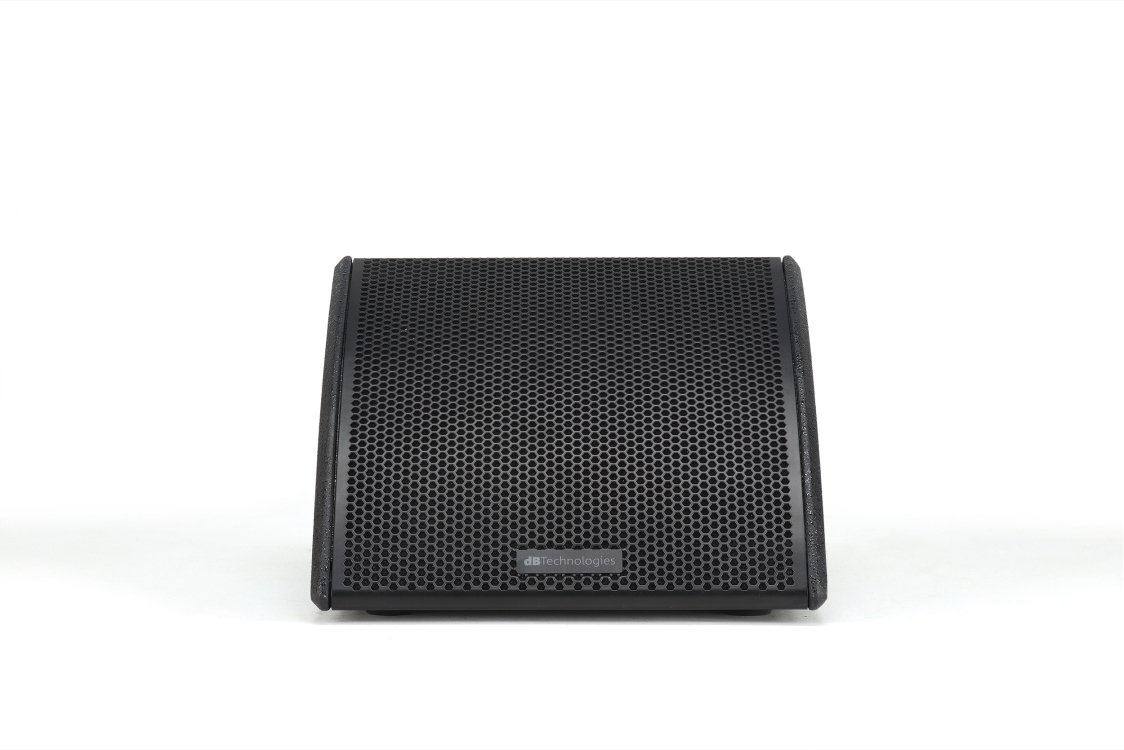

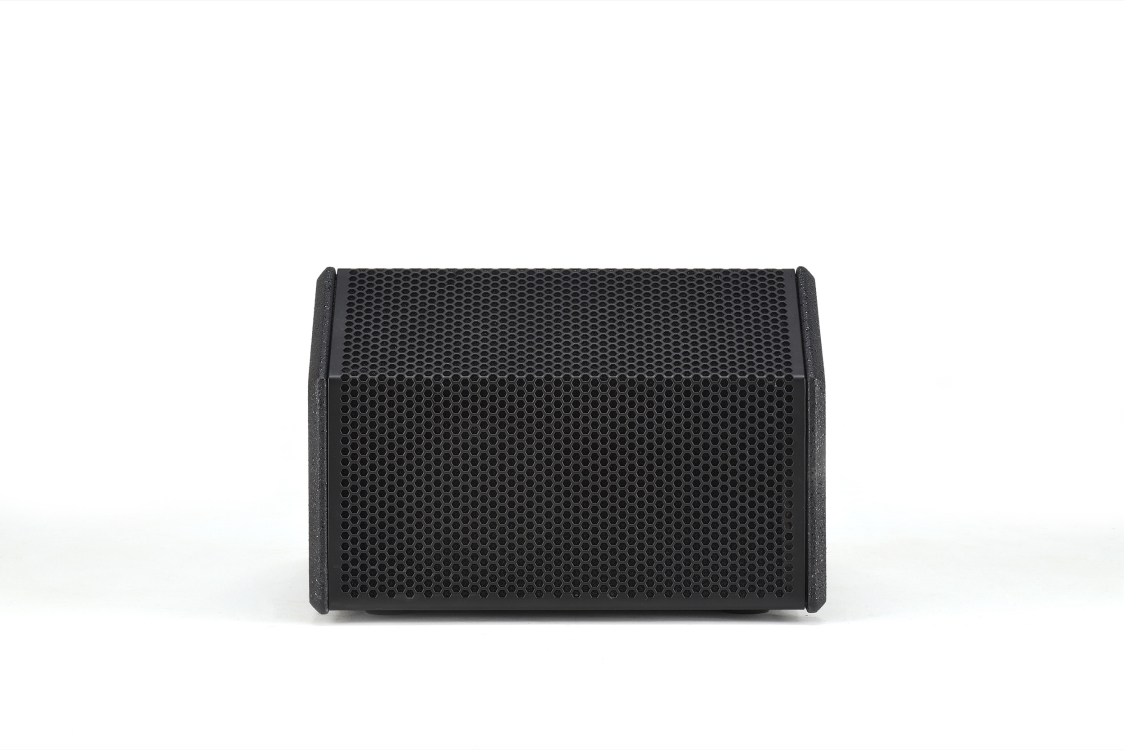

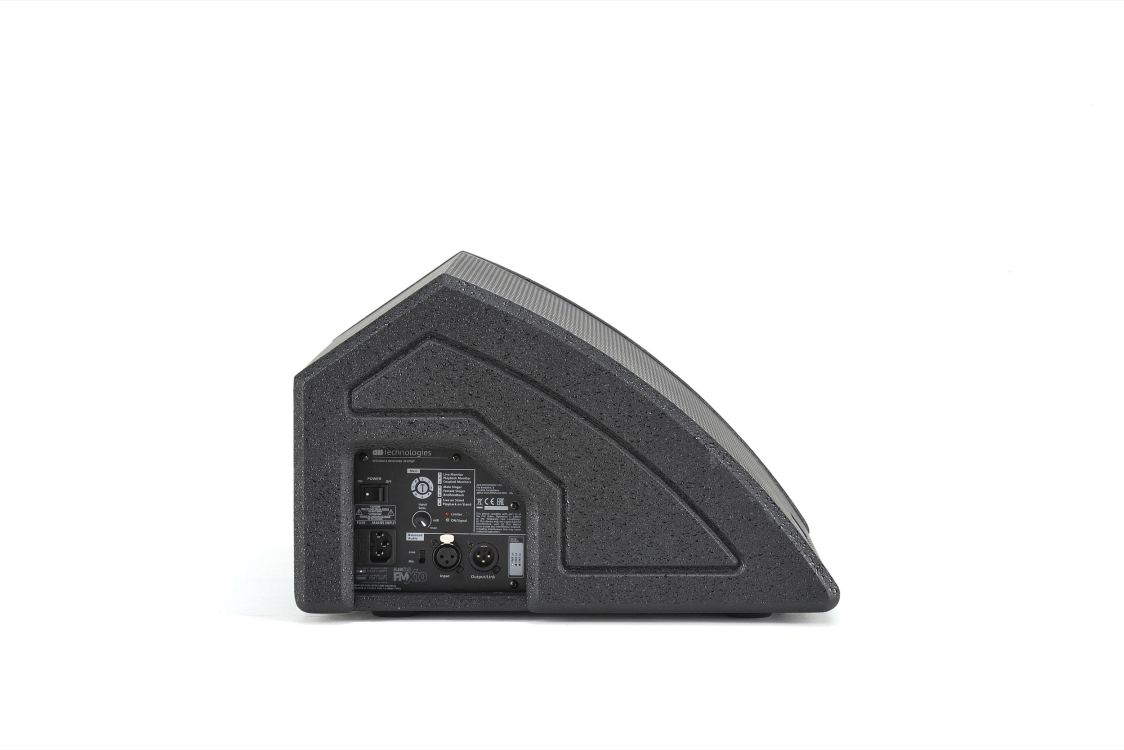

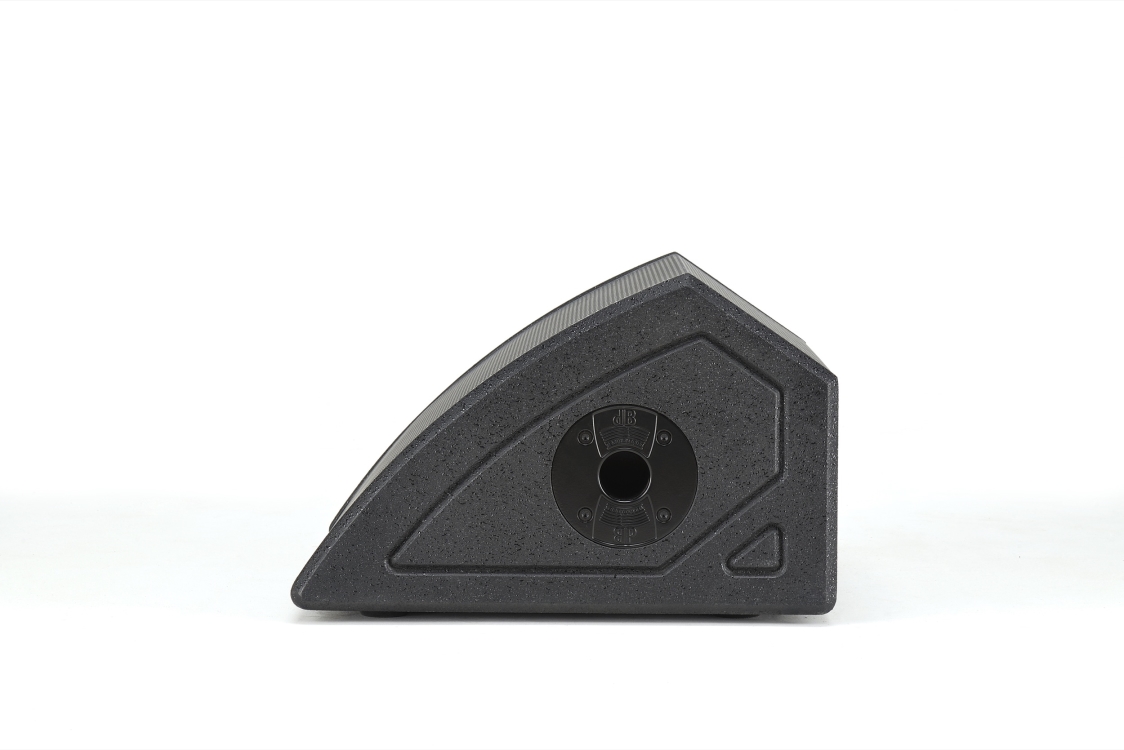

Technical Data Speaker Type: 2-Way Active Coaxial Stage Monitor

Acoustical data Frequency Response [- 10 dB]: 57 – 19.000 Hz

Max SPL: 125 dB

HF: 1″, 1″ v.c.

Directivity: 60°X90°

Horn Rotatable LF: 10″, 2″ v.c.

Amplifier Amp Class: Class D

Peak Power: 800 W

Processor Controller: DSP 28/56 bit AD/DA

Converter: 24 bit/48 kHz

System Presets: 8 presets

Limiter: Peak, RMS, Thermal Advanced DSP

Function: FIR Filters Crossover Frequency1800 Hz Slope LF/HF24 dB/oct Mechanics

Housing: Plywood Housing

Design: Multifunctional Handles1 integrated on bottom side

Pole mount: 36 mm

Width: 390 mm (15.35 in)

Height: 268 mm (10.55 in)

Depth: 411 mm (16.18 in)

Weight: 11.3 kg (24.9 lbs)
