Description of Listing

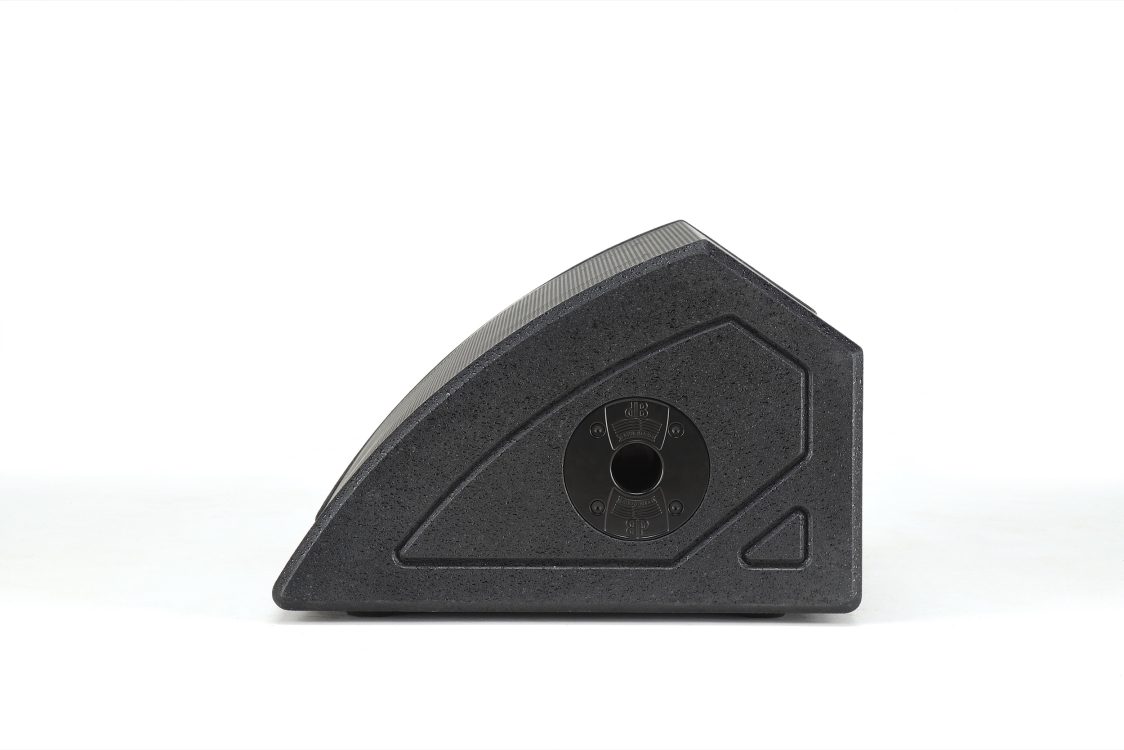

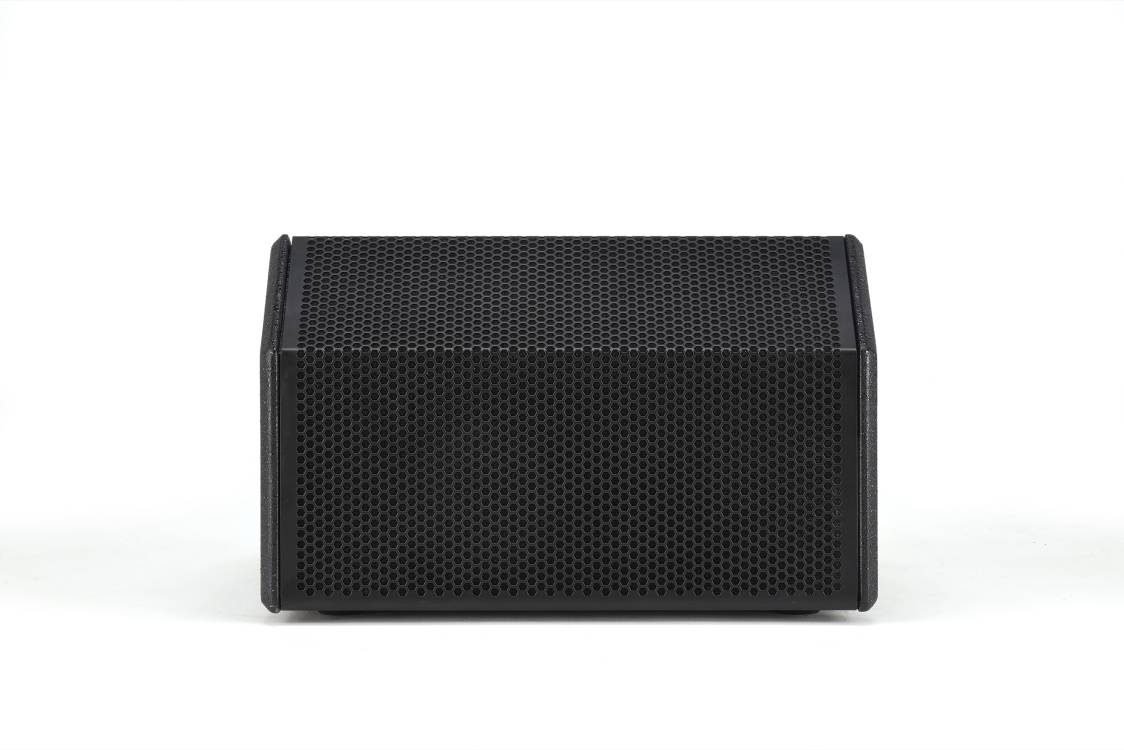

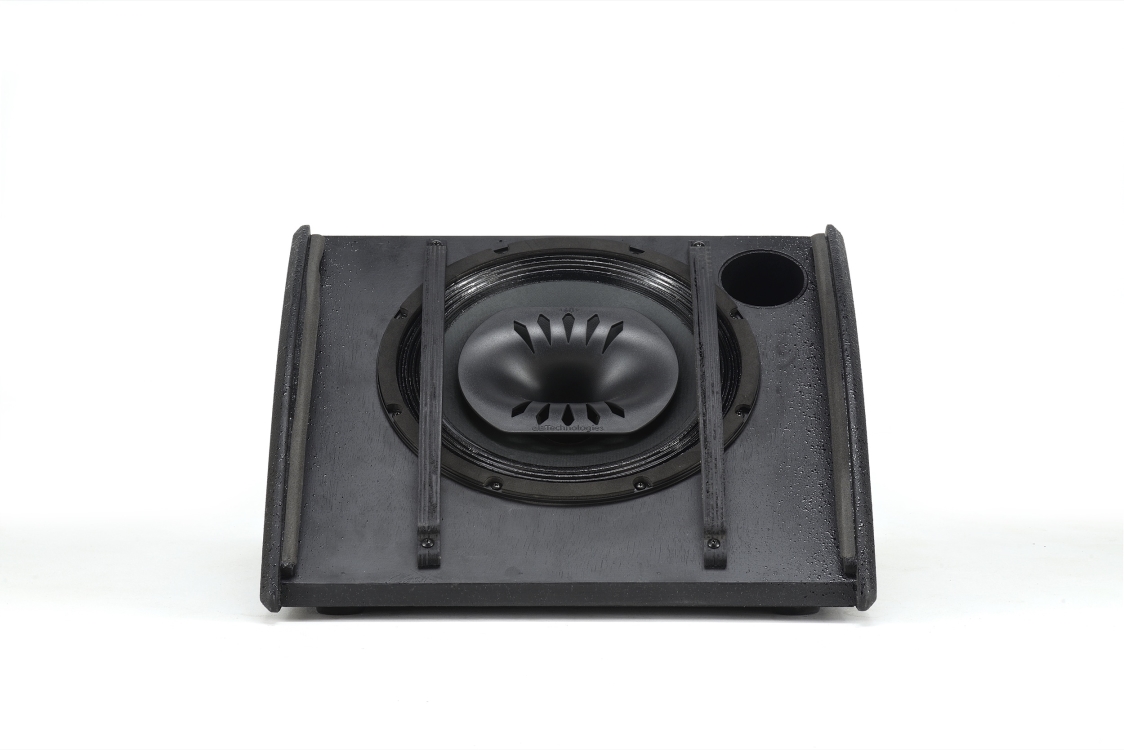

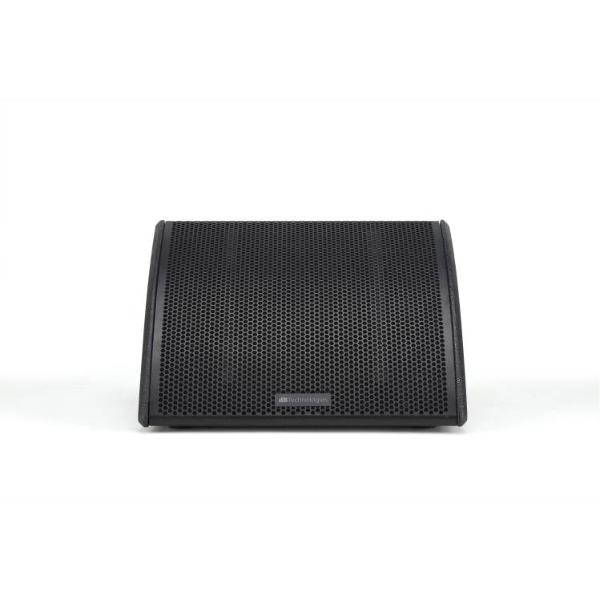

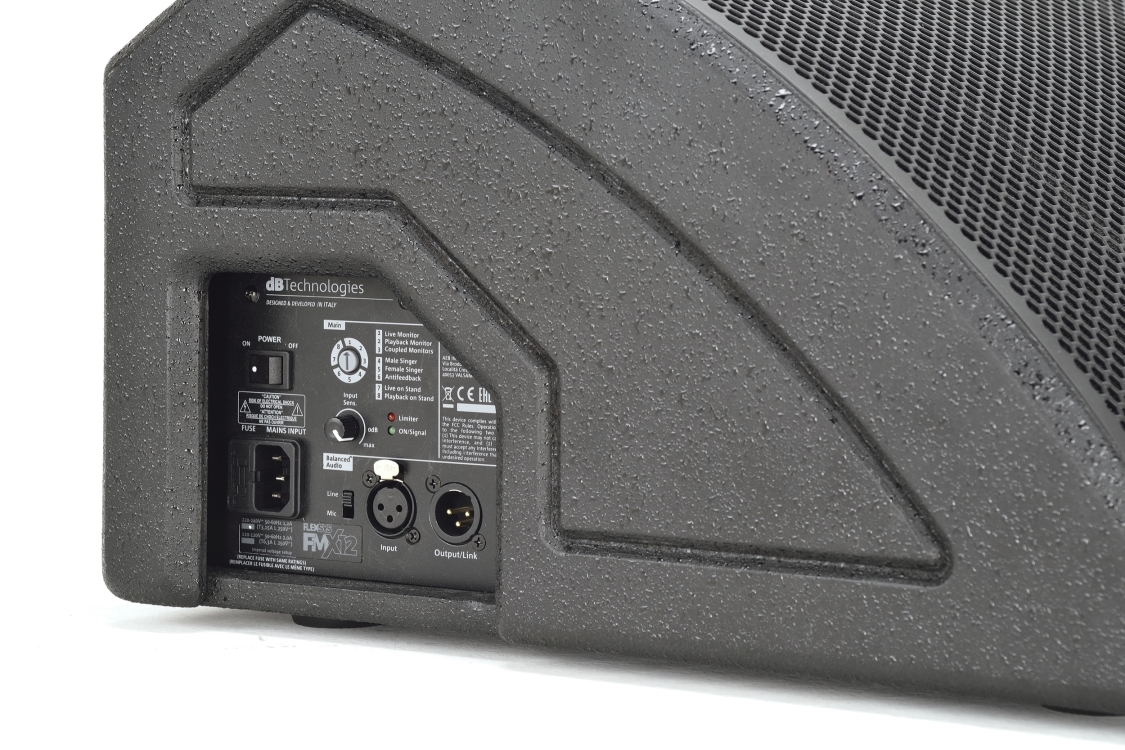

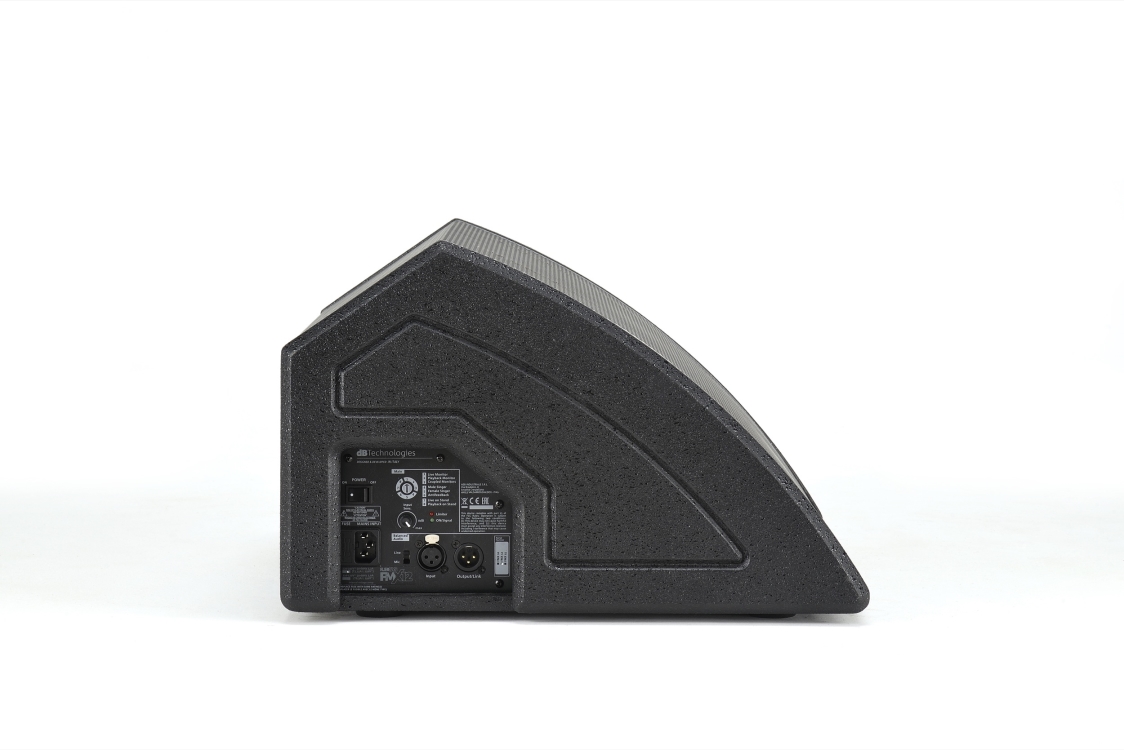

Active 12'' stage monitor
Speaker Type2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 10 dB]52 – 19.000 Hz
Max SPL128 dB
HF1″, 1.3″ v.c.
Directivity60°X90°
HornRotatable
LF12″, 2″ v.c.
Amplifier
Amp ClassClass D
Peak Power1200 W
Processor
ControllerDSP 28/56 bit
AD/DA Converter24 bit/48 kHz
System Presets8 presets
LimiterPeak, RMS, Thermal
Advanced DSP FunctionFIR Filters
Crossover Frequency1740 Hz
Slope LF/HF24 dB/oct
Mechanics
HousingPlywood
Housing DesignMultifunctional
Handles1 integrated on bottom side
Pole mount36 mm
Width465 mm (18.30 in)
Height297 mm (11.69 in)
Depth444 mm (17.48 in)
Weight13.9 kg (30.6 lbs)
