Description of Listing

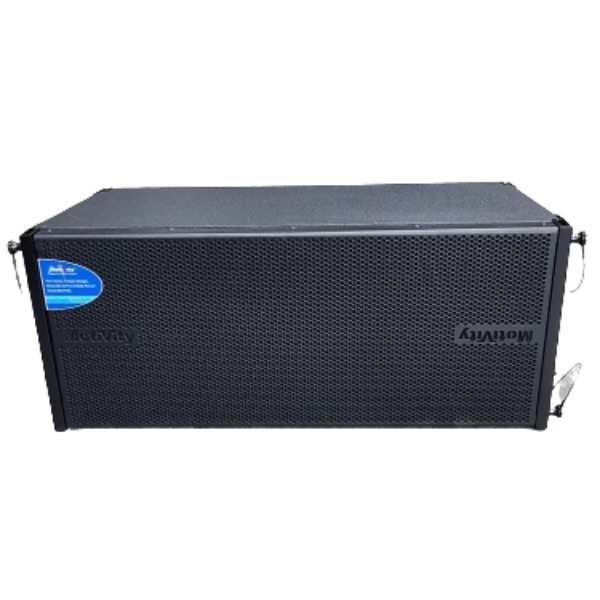

2 Way 10'' passive linearray system
| System type: 3-unit, 2-way inverted type |
| Rated power:700W |
| Maximum power: 2800W |
| Sensitivity (1w@1m): 107db |
| Nominal Impedance: 8 OHMS |
| Recommended amplifier rated output power : 1000W-3000W#8 OHMS |
| Maximum sound Pressure level: 135dB@700w(138dB@1400w) |
| Frequency Bandwidth:65Hz—18KHz |
| Transducer configuration:LF Driver Size 10″ (250mm Unit 65 mmVoice coil) ×2 HF Driver Size 3″ (75mm Voice coil) ×1 2. HF Waveguide Horn 1.5″ (38 mm Driver)×1 Frequency division mode: Passive |
| Connector : Speakon NL4x2pin 1+/2+POS PIN1-/2-NEG |
| Box material: 18mm (0.7″) High quality plywood |
