Description of Listing

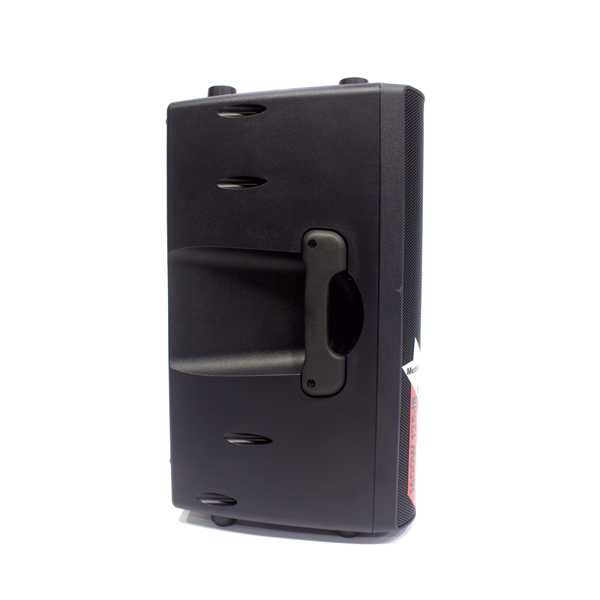

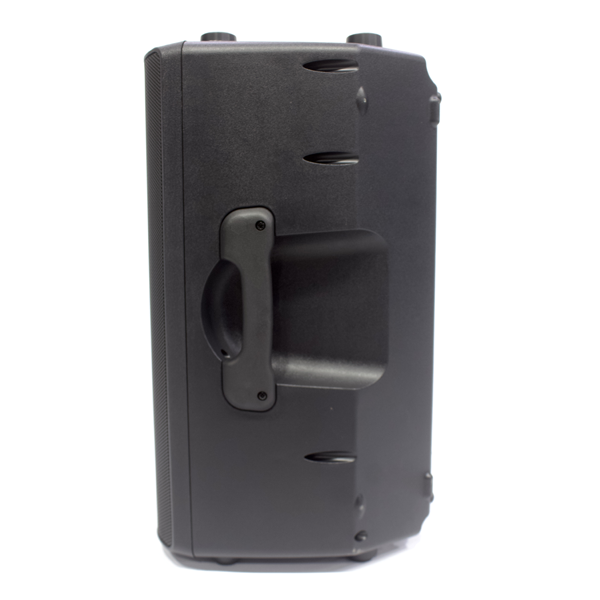

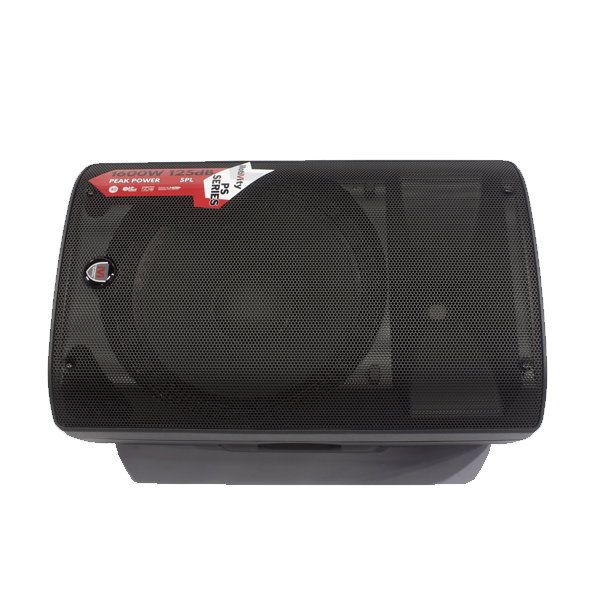

2 Way 12'' active loudspeaker
- System Type : 2-way active ported loudspeaker
- Power System: Claass D(Bi-AMP, LF 350W/RMS+HF 50W/RMS),1600W Peak
- Continuous Power: Low: 350W / High: 50W
- Program Power: Low: 700W / High: 100W
- Drivers: Low-Frequency: 12.0” (305 mm) driver
- High-Frequency: 1.0” (25 mm) neodymium compression driver,Crossover Frequency: 2 kHz
- Maximum SPL: 122dB (peak), 90 dB (continuous) (dB-SPL @ 1 m)
- Frequency Response: 65 Hz – 20 kHz (-3 dB)
- Frequency Range: 55 Hz – 20 kHz (-10 dB)
- Horn Coverage: 90° horizontal x 60° vertical (nominal)
- Equalization: Contour switch with low- and high-frequency +3 dB boost

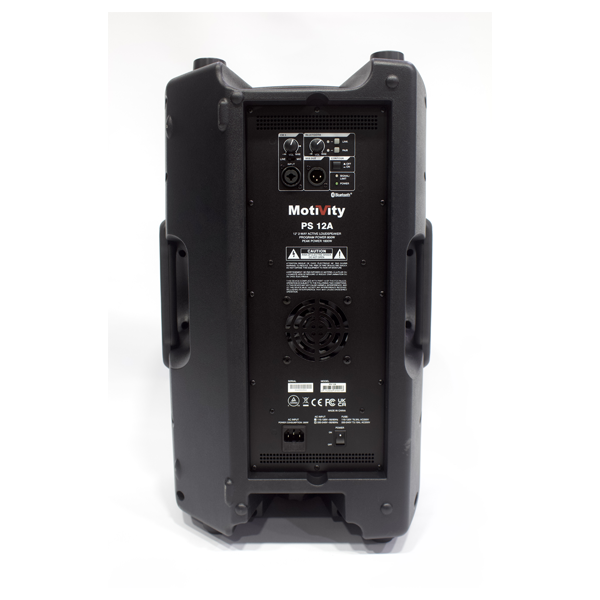

- Connectors: (1) XLR balanced input (Line/Mic )
- (1) XLR mix output (Link)
- (1) IEC power cable input
- Bluetooth Stereo: Stereo L/R-VOL-Pair-Link Switch
- Controls: Volume Control knob, Power switch, Contour switch, Line/Mic toggle switch Thermal, Overload Analog limiter, Compressor
- Indicators: Power ON with Green LED, Clip Limiter with Red LED, (2)Bluetooth Pair/Link Led
- Power: Connection: IEC
- Voltage: 110-120 V~, 220-240 V~, 50/60 Hz, switchable
- Fuse: 100-120V T6.3AL AC250V, or 220-240V T3.15AL AC250V
- Consumption: 350 W
- Protections: Thermal, Overload Analog limiter, Compressor
- Enclosure: injection-moulded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
- Mounting/Installation: Standard 36 mm pole socket, wedge monitor
- Dimensions (H*W*D): 602*381*348mm (23.7″*15″*13.7″)
- Weight: 30.31 lb. / 13.75 kg
