Description of Listing
Double 18'' passive subwoofer
| System type: | 2 unit reverse phase | ||||||||
| Rated power: | 1400W | ||||||||
| Maximum power: | 2800W | ||||||||
| Peak power: | 5600W | ||||||||
| Nominal impedance: | 4 OHMS | ||||||||
| Recommended rated output power of amplifier: | 1200W -1500W @8 OHMS | ||||||||
| Nominal sensitivity ( 1W@1m ): | 104dB | ||||||||
| Maximum sound pressure level: | 135dB@1400w(138dB@2800W) | ||||||||
| Frequency bandwidth: | 35Hz—300Hz | ||||||||
| Nominal directivity ( -6dB ): | ———- | ||||||||
| Transducer configuration: | low frequency driver 18″ 460mm unit with 100mm voice coil × 220Magnetic Steel *2 | ||||||||
| Frequency division Mode : | Passive | ||||||||

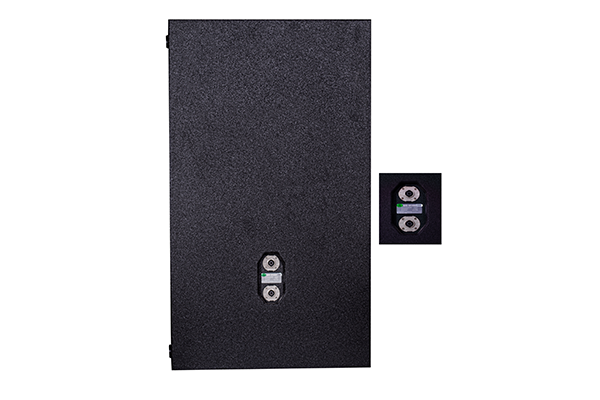

| Connector: | SPEAKON NL SPEAKON NL4 ×1 PIN1 +/2+POS PIN1-/2-NEG | ||||||||
| Box material: | 18mm ( 0.7″ ) MDF Medium density fiber board | ||||||||
| Color: | Dark gray,can be customized other color | ||||||||
| Box size: | W 600mm* D 700mm *H 1044mm | ||||||||
| NET Weight : | 95kg | ||||||||
| Reference application domain | suitable for multi function hall ,auditorium , lecture hall ,conference room,KTV,bar,Etc | ||||||||
