Description of Listing

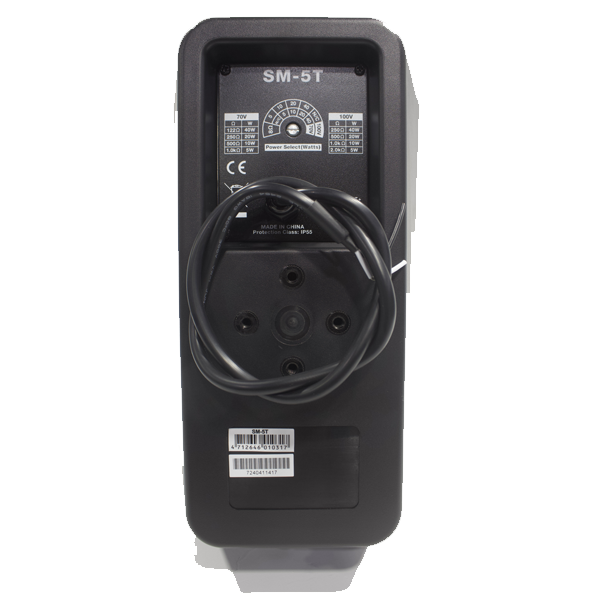

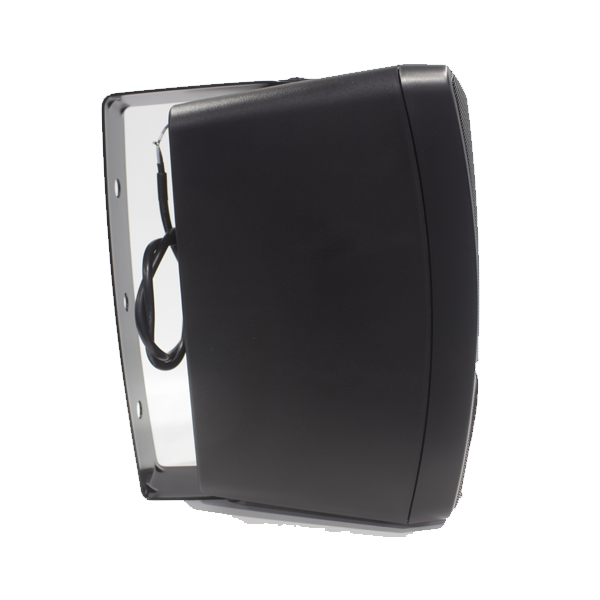

2-Way 8" Passive Speaker Cabinet
- System Type : 2-Way 8″ Passive Speaker Cabinet
- Transducer Low : 8″ Ferrite Woofer-1.2″ V.C 8Ω/80W
- Transducer High: 1.0” V.C,Neodymium Tweeter
- Input Voltage: 70V / 100V
- Sensitivity (1w/1M): 89dB
- Enclosure Construction : Trapezoidal shape/ Wall bracket capability / Injection-molded ABS with perforated steel grille.
- Transformer Selectable Power: 10W / 20W / 40W / 80W
- System Impedance: 70V _ 500Ω / 250Ω / 125Ω / 62Ω_Bypass
- 100V _ 1000Ω / 500Ω / 250Ω / 125Ω_Bypass
- Frequency Response: 80Hz-20kHz (-10dB)
- Connect: Cable Conductor
- Mounting: 2*M6 Points for Mounting ,
- 4*M5 Threaded Sockets in Back
- Dimensions(H×W×D) : 16.0”(406mm) x 9.8”(250mm) x 10.0”(251mm)
- Net weight: 6.4Kg / 14.1 Ibs
