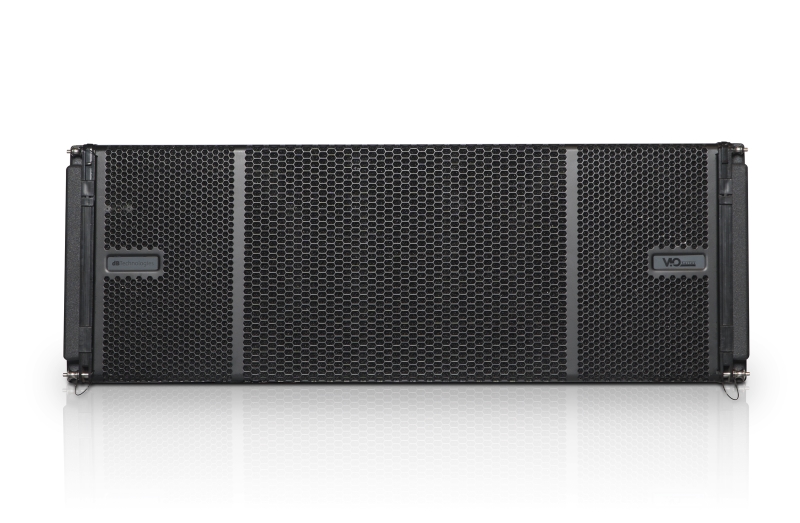

Speaker Type3-Way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB]55 – 18.600 Hz
Max SPLOne Unit: 142 dB

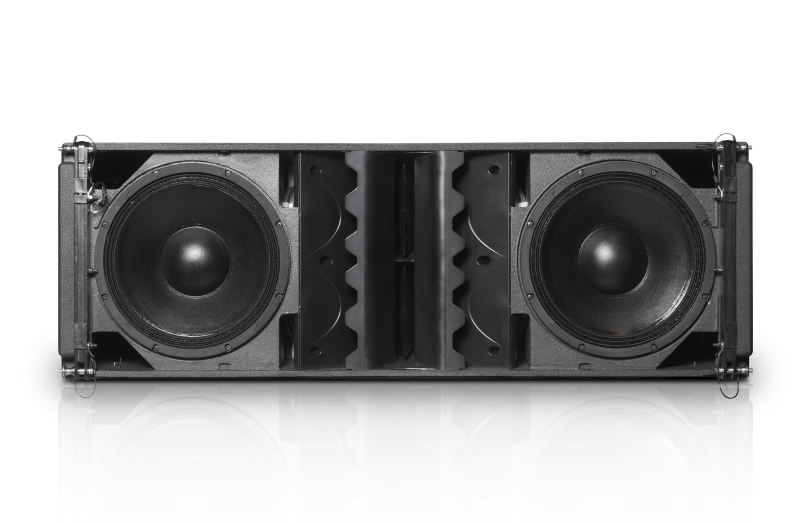

HF2 x 1.4”, 3” v.c. – Neodymium
MF4 x 6.5” , 2” v.c. – Neodymium
LF2 x 12”, 3” v.c. – Neodymium
Horizontal Directivity90°
Vertical Directivitydepends on array size and configuration
Amplifier
Amplifier3200 W RMS [2x 1600 W RMS bi-amped Class-D Digipro® G4]
CoolingConvection, Internal fan
Power SupplyFull-range SMPS with PFC (100V~-240V~, 50-60Hz)
Processor
ControllerDSP 32 bit
AD/DA Converter24 bit/96 kHz
LimiterDual Active Multiband Peak, RMS, Thermal
Processing (filters)FIR Linear Phase

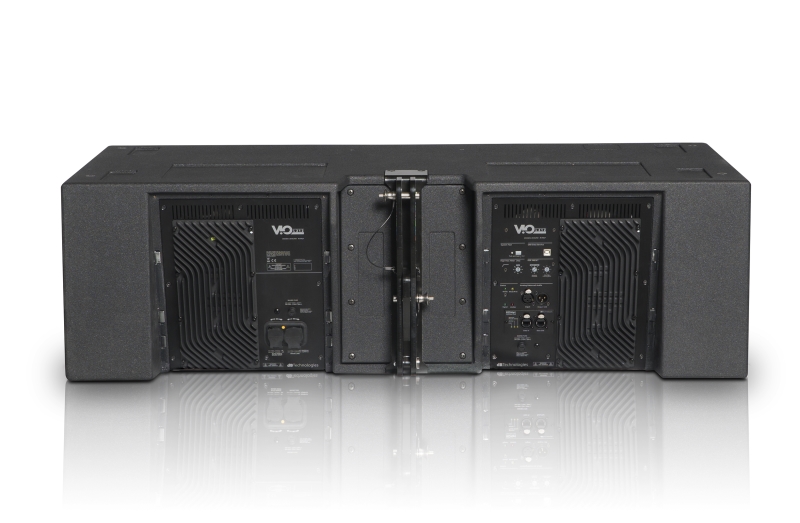

Input
Signal Input1x XLR female, balanced
Signal Output1x XLR male, balanced
Expansion CardRDNet Card (1x RJ45 IN 1x RJ45 Link)
Dante Card [Optional]
Power Socket1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls1 x Speaker Coupling (7 presets)
1 x High pass filter Rotary Encoder (8 presets)
1 x HF Compensation (8 presets)
1 x System Test Button
Special FeaturesNFCTM and Frontal LED Identification System
380V Resistant SMPS
IPOS Intelligent Power-On Sequence
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
Inclinometer
Mechanics
HousingMultiplex plywood – Polyurea painting
Housing DesignTrapezoidal

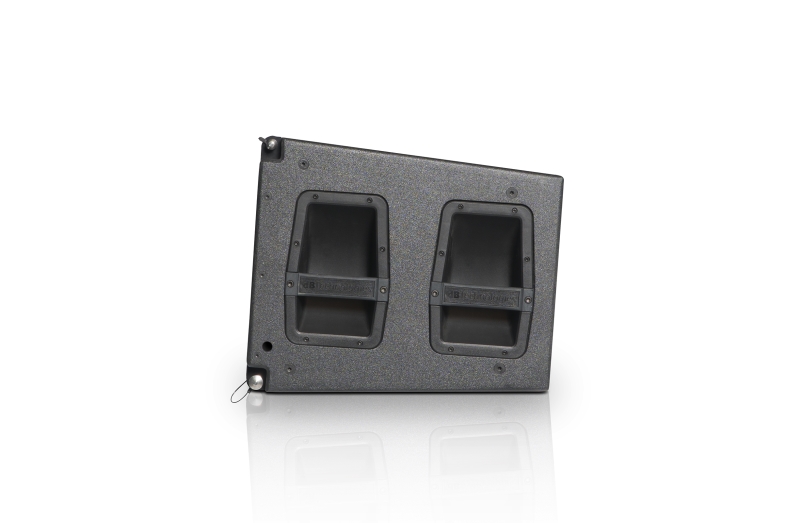

Handles4 x handles (2 on each side)
Rain CoverIncluded [Rubber magnetic]
Rigging Points3 points rigging hardware
Width1100 mm (43.31 in)
Height380 mm (14.96 in)
Depth450 mm (17.72 in)
Weight54.4 Kg (119.93 lbs
